Knapsack Sprayer : PB








Brush Cutter - MB3600







1  Crankcase System

No-Part Code  - Description
1 - KB14004AA -Case, drive
2 - KB14005AA -Case, starter
3 - S111X62X010 - Bearing, ball
4 - FR64230 - Oil seal
5 - KW21005AA - Oil seal
6 - KU40003AA - Pin, dowel
7 - KU12028AA - Screw & washer
8 - KU40004AA - Pin, dowel
9 - KH90021AA - Nose
10-KH30018AA - Case, fan
11-FR64569F - Bolt & washer
12-KH90025AA - Cover
13-KW56056BA - Label
14-KU60001AA - Clamp
15-FR64692A - Wire, hose guide
16-H071D05X016K - Screw & washer
17-KT30013AA - Base, engine







2  Cylinder, Top Cover System
No - Part Code - Description
1 - KC13011AA - Cylinder
2 - KW32003BA - Gasket, cylinder
3 - B121C05X016 - Bolt, sch
4 - B151B05X050 - Bolt, stud
5 - KH40031AA - Cover, top
6 - KH70008AA - Guard, plug
7 - H071D05X020K - Screw & washer
8 - KU12018CA - Screw & washer
9 - KE05009BA - Stop switch assy
10-KE80013AA - Switch, stop
11-KE05009AA103 - Band
12-KE05009BA004 - Wire, lead








3  Crankshaft & Piston System
No - Part Code - Description
1 - KD01022DA - Crankshaft assy
2 - KP01031AA - Piston set
3 - FR66814 - Pin, piston
4 - W430B03X013 - Key, woodruff
5 - FR66815 - Ring, top
6 - BG03488 - Clip, piston pin
7 - FR66809 - Bearing, needle
8 - ZZ70028C - Nut, conical spg

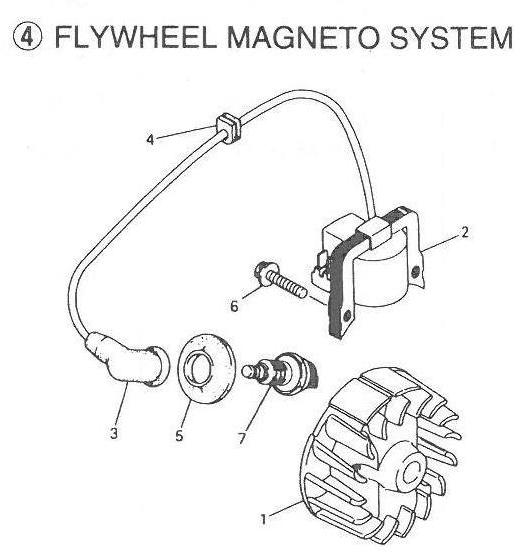

4  Flywheel Magneto System
No - Part Code - Description
1 - KD11016AA - Rotor
2 - KE04025AA - Coil. Ignition
3 - FR64961 - Cap, plug
4 - KE90001BA - Grommet
5 - FR66751 - Cap, plug
6 - FR64569A - Bolt & washer
7 - FR63087A -Plug, spark














5 Carburetor System
No - Part Code - Description
1 - KW34042AA - Basket, insulator
2 - KK31022AA - Insulator
3 - KK50007AA - Pipe, intake
4 - H081D05X023 - Screw & washer
5 - KK11007AA - Carburetor (F)
6 - FR64356XX025 - Nut
7 - KK11004AA005 - Valve, throttle
8 - KK11004AA006 - Packing
9 - FR67380XX012 - Float
10-KK11004AA008 - Chamber, float
11-FR67378XX028 - Gasket
12-FR67378XX129 - Bolt, union
13-FR67387XX109 - Clip
14-KK11004AA015 - Plate
15-KK11004AA016 - Packing
16-KK11004AA017 - Spring
17-KK11004AA018 - Cap
18-KK11004AA025 - Bolt, union
19-KK11004AA026 - Nut
20-KK11004AA027 - Band
21-KK11004AA028 - Washer
22-FR64356XX030 - spring
23-KK11004AA030 - Pin
24-KK11004AA031 - Screw
25-KK11004AA032 - Hinge
26-KK11004AA033 - Valve, needle
27-KK11004AA034 - Screw
28-KK11004AA035 - O-ring
29-KK11004AA036 - Cap
30-KK11007AA034 - Needle, jet
31-KK1104AA035 - Jet, main
32-KK11004AA012 - Jet, needle
33-FR64929 - Cock, fuel
34-FR64929XX003 - clamp
35-FR64929XX002 - Level
36-H051D03X005 - Screw, pan-crs






6 Air Cleaner System

No - Part Code - Description
1 - FR64930R -Air cleaner
2 - FR67208 - Holder
3 - FR64934A - Element, cleaner
4 - FR67555  - Label, name
5 - FR64931A - Cover, cleaner
















7 Muffler System
No - Part Code - Description
1 - KM70028AA - Gasket, muffler
2 - KM01040GA - Muffler assy
3 - KM01041AA - Muffler assy
4 - KM50028BA - Pipe, tail
5 - KM70022CA - Gasket, muffler
6 - KM01033AA004 - Screw & washer
7 - FR67566 - Nut, flange
8 - H071D05X012K - Screw & washer
9 - KM21006AA - Cover, Muffler
10-KU12018AA - Screw & washer
11-KM50031AA - Pipe, tail
12-KU70011AA - Clamp










8 Clutch System
No - Part Code - Description
1 - FR66843A - Clutch
2 - KU80010AA - Spring, clutch
3 - KT12002BA - Shoe, clutch
4 - KT14001AA - Bolt, clutch
5 - FR67347 - washer
6 - KU36001AA - washer




9 Recoil Starter System
No - Part Code - Description
1 - KS02037AA - Recoil starter
2 - KS02037AA001 - Case, starter
3 - KS02037AA002 - Reel
4 - KS02037AA003 - Spring, spiral
5 - KS02037AA004 - Washer
6 - KS02037AA005 - Screw
7 - KS02037AA006 - Guide
8 - KS02037AA008 - Rope, starter
9 - FR66881XX011 - Knob, starter
10-KS03004BA - Pulley, starter
11-KS03004AA002 - Ratchet
12-KS03004BA103 - Spring, return
13-KS03004AA004 - Snap ring
14-KS90023AA - Plate
15-KU12018CA - Screw & washer
16-KT30011BA - Base, engine
17-KW52121AA - Label, name




10 Control System
No - Part Code - Description
1 - FR67168F - Lever, throttle
2 - KR22014GA - Wire, throttle













11 Additional Parts
No - Part Code - Description
1 - KF70005EA - Tube, fuel
2 - FR67252B - Spring
3 - FR67419B - Clip



















1 Main Pipe
No - Part Code-  Description
1 - 2413-350A - Main pipe joint assy ( Ø26 )
2 - 6214-009A - Cover, bearing
3 - 803A0627 - Ball bearing
4 - 190D0520 - Bolt
5 - 461L0500 - Spring washer
6 - 4923-005A - Bolt
7 - 199D0510 - Bolt
8 – NIL -Throttle lever
9 - 4024-094C - Flexible shaft liner assy
10- 3049-020B - Flexible line assy
11- 3213-181A - Flexible shaft
12- 6214-013A - Liner cover A
13- 5552-003A - O-ring

















14- 6314-001A - Liner cap
15- 6314-006A - Liner cap
16- 3313-230A - Main pipe assy  ( Ø26 )
17- 5233-033A - Metal cushion
18- 4113-026B - Drive shaft ( Ø7 )
19- 6111-470A - Loop handle assy  ( Ø26 )
20- 6111-430A - Loop handle
21- 8474-005A - Screw (4) nut (4) pack
22- 6112-340A - Safety cover assy ( Ø26 )
23- 6112-036A - Safety cover
24- 3427-056A - Metal for safety cover
25- 197D0616 - Bolt













2 Gear Case
No - Part Code - Description
NIL - 2411-540A - Gear case assy
1 - 2411-036A - Gear case
2 - 2411-004A - Gear case
3 - 4111-011A - Shaft
4 - 4141-006A - Pinion
5 - 4141-007A - Gear
6 - 605A6201 - Bearing
7 - 801A0629 - Bearing
8 - 801A6000 - Bearing
9 - 802A6000 - Bearing
10- 481J3200 - Snap ring
11- 481J2600 - Snap ring
12- 110B0608 - Snap ring
13- 197B0608 - Bolt
14- 197B0630 - Bolt
15- 197B0512 - Bolt
16- 223D0510 - Screw
17- 3425-042A - Holder-upper
18- 3425-034A - Holder-lower
19- 350D1000 - Nut
20- 3421-018A - Disk








3 Clutch Housing
No - Part Code - Description
1 - 2421-200B - Clutch housing assy
2 - 2421-014C - Clutch housing
3 - 3413-016C - Clutch drum
4 - 603A6202 - Ball bearing
5 - 4941-003B - Pin stopper
6 - 5313-005B - Coil spring
7 - 482S0500 - Clip
8 - 480J1500 - Snap pin
9 - 481J3500 - Snap pin
10- 197D0630 - Bolt

















4 Frame
No - Part Code - Description
1 - 3331-130A - Back pack frame assy
2 - 3331-035B - Back pack frame
3 - 6315-00EA - Back pack pad
4 - 3427-036A - Pad retainer (upper)
5 - 3427-037A - Pad retainer (lower)
6 - 4923-022A - Screw
7 - 6351-028A - Harness comp
8 - 3331-042A - Tank bracket
9 - 120S0512 - Bolt
10- 343D0500 - Nut


















5 Engine Mount
No - Part Code - Description
1 - 3424-050A - Turn bracket
2 - 5315-010A - Spring
3 - 346D0600 - Nut
4 - 120S0612 - Bolt
5 - 4117-006A - Shaft D engine mount
6 - 3424-024E - Plate D engine mount
7 - 197D0640 - Bolt
8 - 346D1000 - Nut
9 - 466L1000 - Plate washer
10- 314D1000 - Nut
11- 197D0616 - Bolt
















6 Fuel Tank
No -Part Code - Description
1 - 6117-010B - fuel tank comp
2 - 6114-010A - Tank cap assy
3 - 6117-003F - Fuel tank
4 - 6114-001B - Tank cap
5 - 6217-001A - Breather
6 - 6116-009A - Strainer
7 - 6217-028A - Tank band
8 – NIL - Fuel hose
9 – NIL - Spring, house guard
10- 5331-002A - Hose band
11- NIL - Hose band



















7 Tool
No - Part Code - Description
1 - 8447-001A - Tool set
2 - 8443-002A - Spanner
3 - 8444-002A - Stopper pin
4 - 8442-003A - Socket wrench
5 - 8441-001A - Driver
6 - 8446-001A - Convex band




Petrol Engine : Robin Engines









FUJI HEAVY INDUSTRIES LTD
INDUSTRIAL PRODUCTS COMPANY

4-410 Asahi, Kitamoto-shi,
Saitama, 364-8511, Japan
Phone   +81(48)593-7798
Fax         +81(48)593-7946
website http://www.fhi.co.jp/robin/
